Size: 2 ” – 24″

Bore: Reduced and Full

ANSI:
150 – 1500

Body: 3-PC Forged Steel A105/LF2

End Connections:
RF and RTJ

Specifications: Designed per API-6D and ASME B16.34, Fire-tested per API 607, CE-PED, ISO 15848-1 Low E

Key Features & Benefits

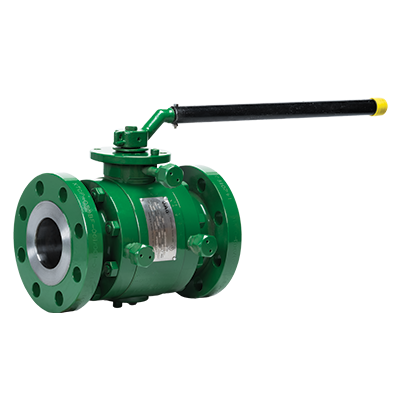

The JAG TB3 Trunnion Mounted Ball Valve Series features a 3-pc forged steel body on all classes and sizes. The TB3 Series is manufactured in accordance with API 6D, ASME B16.34, and various other industry specifications.



  • Blow-out Proof Stem Design
  • Double Block & Bleed
  • Firesafe & NACE
  • Emergency Sealant Injection
  • Lifting Lugs & Supporting Feet (6" and larger)
  • Double Isolation and Belled or Combination Seat (on request)
  • ISO 5211 Top Flange
  • ISO 15848-1 Fugitive Emission Type Tested



Literature

TB3 Series - Product Catalog

IOM (2" - 4")

IOM (6" - 24")
